AM76 시리즈 범용 모터

AM76 시리즈 범용 모터 모델: AM7620 AM7625 AM7630 AM7635 AM7640 AM7645

제품 기능 및 장점

  • 고효율
  • 그레이트 토크
  • 고속

주요 응용 프로그램

  • 가정 및 상업용 블렌더 및 믹서
  • 초미세 나노분쇄기
  • 가정 및 상업용 블렌더 및 믹서
  • Food & Beverage Processing Equipment
  • Electric Devices & High-Voltage Equipment Drives
  • Medical Equipment
  • Automation Devices
  • Industrial Equipment
  • New Energy Equipment

AM76 시리즈 제품 기본 정보

정격 전압: AC120V – 127V

AC220V – 240V

 정격 토크: 100mN.m – 500mN.m
무부하 속도: 10000rpm – 26000rpm 정격 속도 5000rpm – 16000rpm
작동 현재: 0.4A – 4.0A 능률: 30% – 60%
출력 파워: 100W – 400W 삶: >100시간

OEM | 커스터마이징 서비스

  • 사용 가능

패키지

  • 표준 수출 패키지 또는 고객 지침

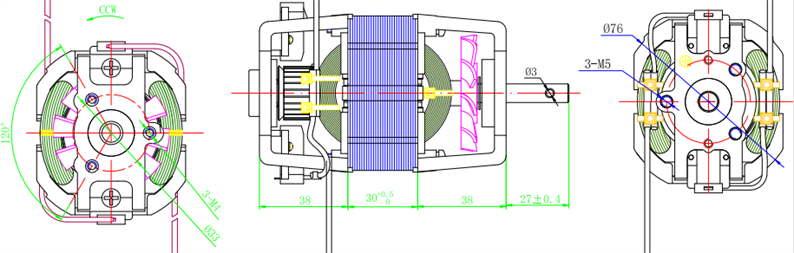

외형도

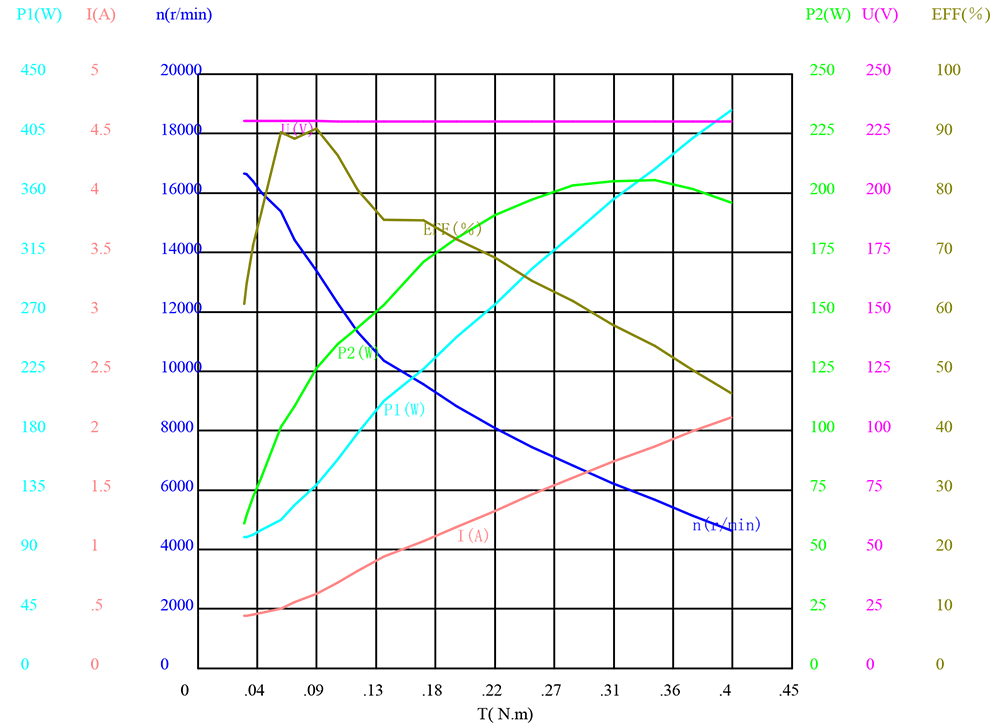

성능 곡선

무부하
속도: 19565 RPM
현재의: 0.511 ㅏ
최대 토크에서: 0.0069 NM
최대 효율
능률: 39.8 %
속도: 11808 RPM
토크: 0.0629 NM
현재의: 0.888 ㅏ
출력 파워: 126.12 여
최대 출력
속도: 5668 RPM
토크: 0.346 NM
현재의: 1.044 ㅏ
출력 파워: 205.35 여
능률: 88 %

OEM Motor Applications & Customization

AM76 universal motors support appliance motor, mixer motor, food processor motor and compact equipment drive applications. AMOTIC provides custom universal motor design and manufacturing for OEM buyers looking for efficient high speed AC motors.

AM76 Series Universal Motor OEM Customization Guide

Universal motor series for high-speed appliance, power tool and compact equipment projects where speed, torque density and cost control matter. AMOTIC helps engineering and purchasing teams adapt this motor series for prototype validation, small-batch builds and production programs.

Common Custom Options

  • Electrical design: voltage, winding, speed range, load profile and duty cycle.
  • Mechanical design: shaft diameter, shaft length, mounting interface, bearing choice and housing details.
  • Integration details: connector, lead wire, insulation, noise target, lifetime target and packaging.
  • Project support: no MOQ sample discussion, OEM/ODM documentation and application-based quotation.

FAQ

Can AM76 Series Universal Motor be customized for OEM projects?

Yes. AMOTIC supports OEM and ODM customization including motor size, shaft, winding, connector, wire length, mounting and packaging according to project requirements.

Is there a minimum order quantity?

AMOTIC can discuss no MOQ sample and development projects. Production pricing depends on specification, quantity and validation requirements.

What information is needed for a quotation?

Please share voltage, speed, torque or load, duty cycle, target lifetime, noise limit, installation space, shaft drawing and application environment.
